SASH WINDOWS

FEATURES

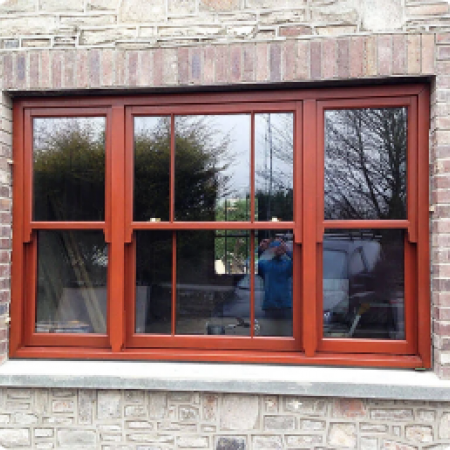

SASH WINDOWS

Traditional sash windows and spring loaded sash windows.Our wide range of traditional sash designs are for those looking for historical style combined with modern standards bringing them up to high standard of comfort and thermal efficiency.  Sliding sash windows open vertically providing a maximum face opening for ventilation and maximum space.



Available in 170 mm thick frame or 146 mm slim frame

In either Cord and weights or Spiral balance

GLAZING

Horizontal and vertical glazing bars are used to continue a uniform pattern where mullions or transoms have been fitted, it is also used create a Georgian style window by using a cross within each unit of glazing.



Leaded, 18mm, 20/26, mm60mm



Obscure glass is used for front doors, French doors or bathroom windows that need a little privacy, patterned glass offers just that whilst retaining the natural light in the room.



Various finishes are available

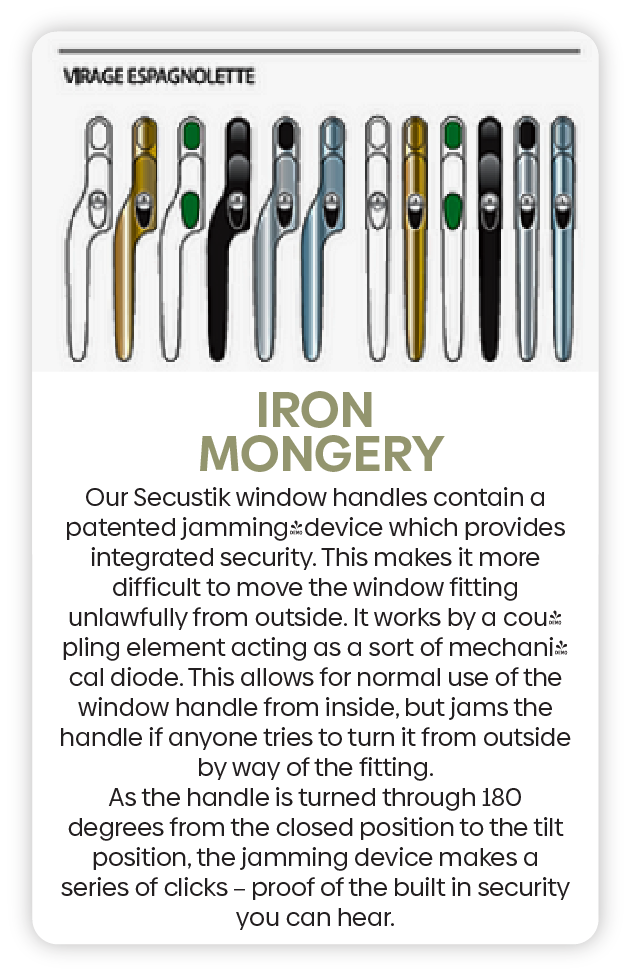

IRON MONGERY

Our Secustik window handles contain a patented jamming-device which provides integrated security. This makes it more difficult to move the window fitting unlawfully from outside. It works by a coupling element acting as a sort of mechanical diode. This allows for normal use of the window handle from inside, but jams the handle if anyone tries to turn it from outside by way of the fitting.
As the handle is turned through 180 degrees from the closed position to the tilt position, the jamming-device makes a series of clicks – proof of the built-in security you can hear. Learn more here

CHOOSE YOUR COLOURS

Our products receive a base coat of timber preservative, then a primer coat, followed by two coats of micro-porous paints by environmentaly friendly REMMERS or SIGMA products.



Dual colour available.

RAL COLOUR OF YOUR CHOICE

Click here for detailed technical information on this product



TECHNICAL DATA

Technical data – Sliding Sash 170 / 146



TIMBER



Softwood – Engineered Redwood



Hardwood – Engineered Meranti or Engineered European Oak



PROFILE AND CONSTRUCTION



Frame thickness 170mm or 146mm

Slide up and down

Spring sash balance

Cord&Weights



Traditional mouldings



COLOURS AND FINISH



High performance coatings in any standard RAL colour paint finish

Preservation micro porous, paint/stain micro porous flow coat applied, 3 coats

Choice of different stains



Dual colour option



GLASS



Glazing D.G.U 24mm, 4mm/ gap TGI/4mm soft coat Low E

Glaze gap Argon gas filled: centre pane Uvalue 1.1W/M2k

Patterned (obscure) glass – Optional



Laminated or toughened (safe) and anti–burglary glass –  Optional



SPACER BAR



Colour availabe: RAL 7035 Standard



Optional: RAL 9016, RAL 9005, RAL 8003, RAK 8016, RAL 7035, RAL 7040



BARS



Astragal 18mm, 20mm, 26mm, 60mm, lead bars



GLAZING BEADING



Internally beaded to prohibit removal of the glass from outside with concealed glazing pins



Silicone continuous neutral cure seal both sides



HORNS



Horns underside of external upper sash, available in 3 shapes – Optional in lower sash



GASKET



Q–Lon by Schlegel



FURNITURE



Locking Fitch over 550mm wide x2/under 550mm wide x1

Sash ring pull x1 [upper sash]

Sash handles Sash lift x2 [lower sash]

Optional child restrictor locks



Available colors: brass or chrome



VENTILATION



Trickle vent may be fitted under the head of frame



DELIVERY PEROID



Generally 7 – 8 weeks unless otherwise specified



Manufacturer has the right to introduce technical alterations without notifying.
