FLUSHS CASEMENT

WINDOWS

FEATURES

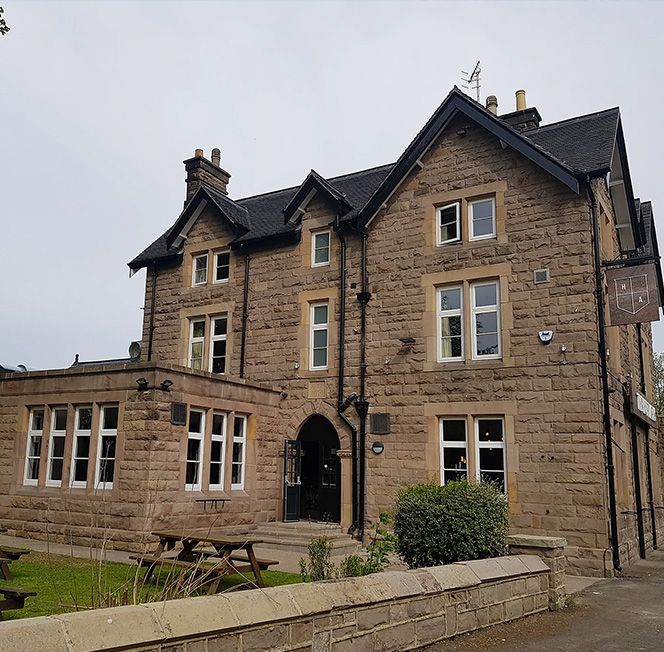

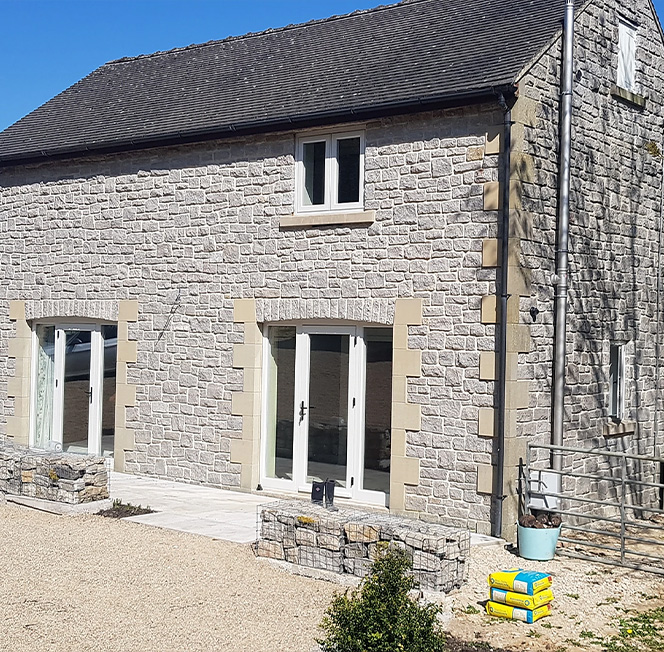

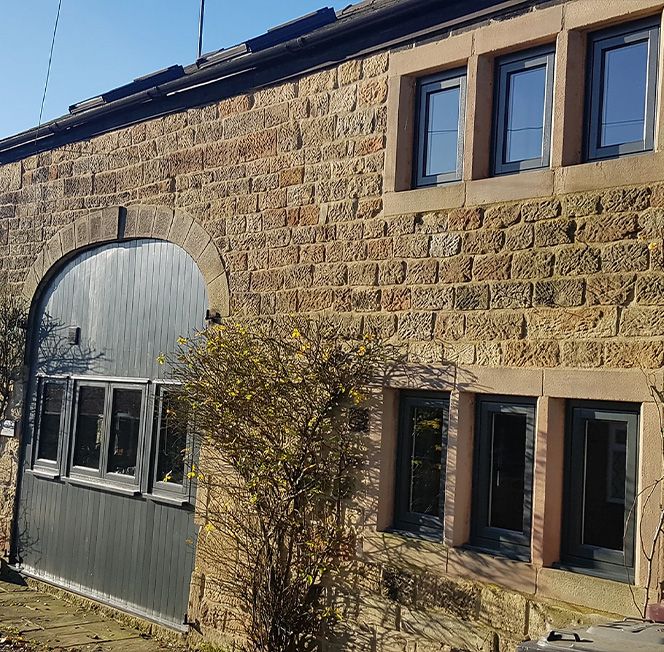

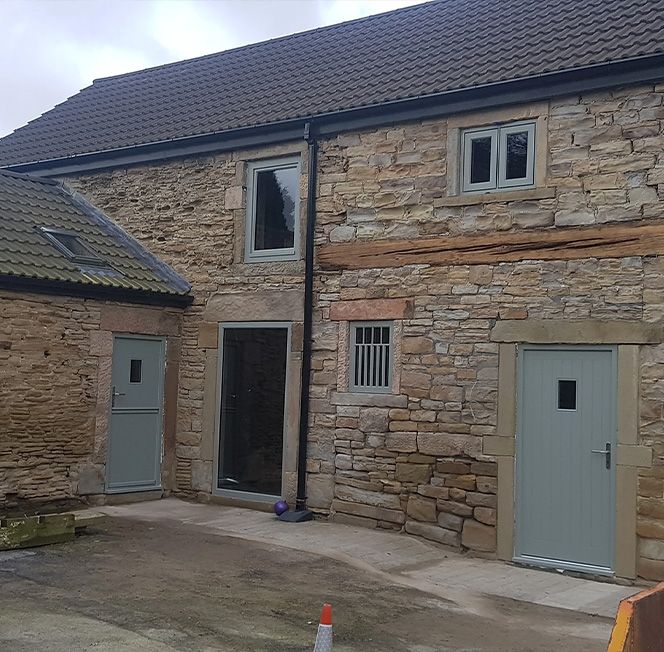

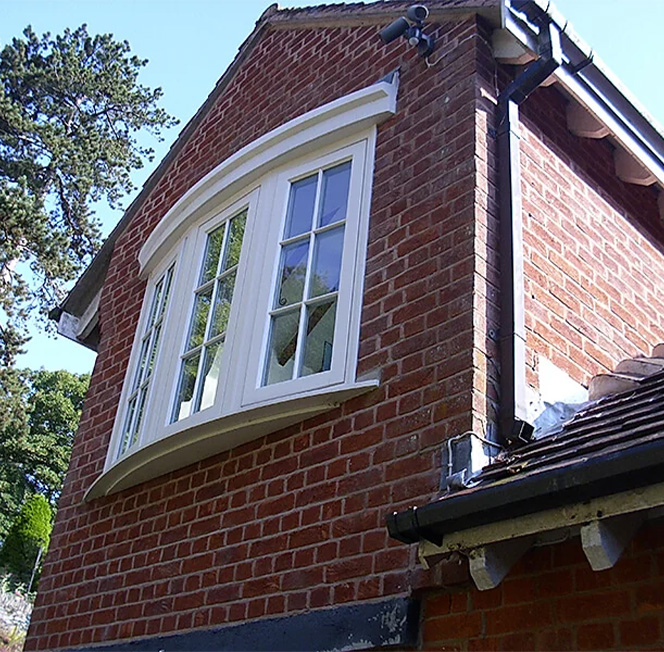

Flush Casement windows are still the most popular choice in the domestic market and we offer a wide range of styles and finishes, so you can be sure there is one that is just what you want.

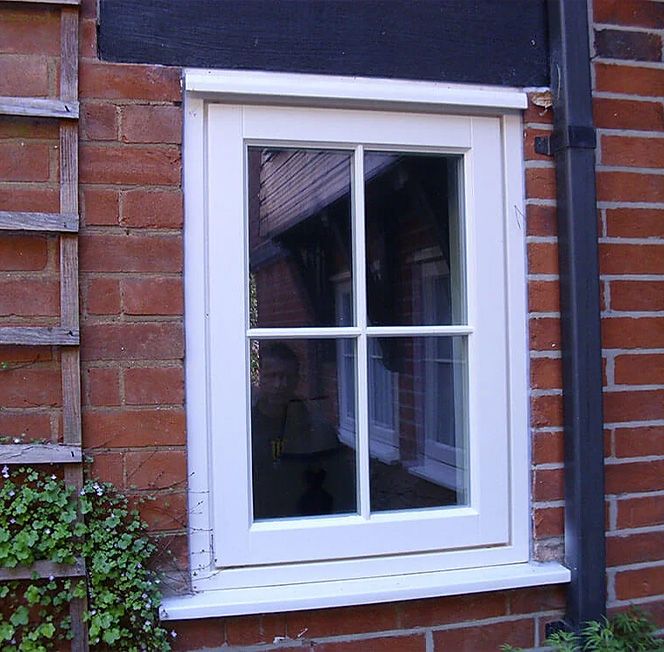

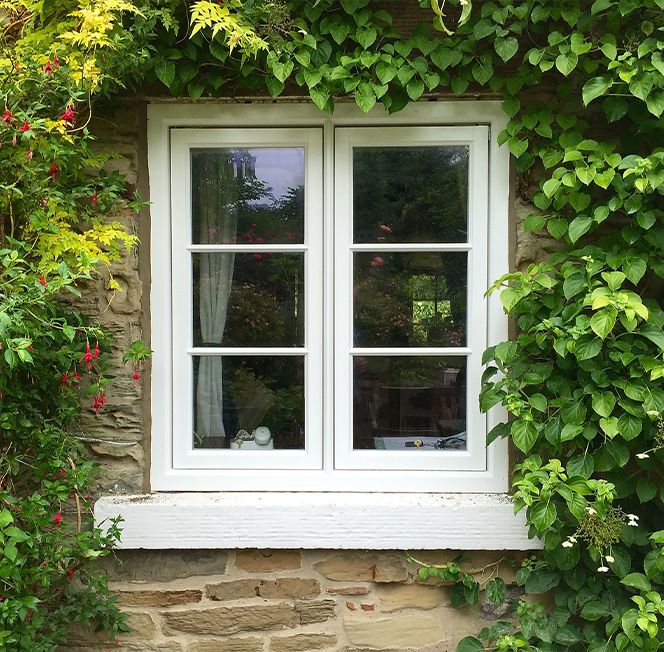

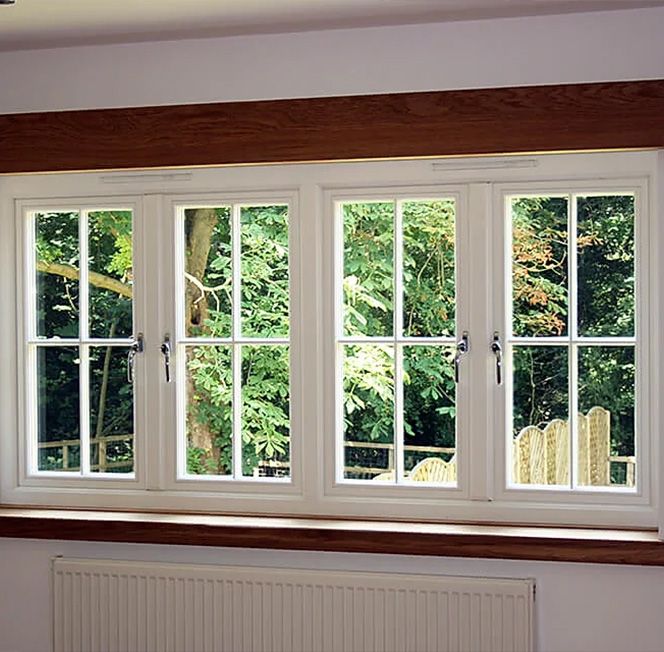

Flush casement windows are characterized by openers that close into the frame and finish flush with the face of the window.



GLAZING

Horizontal and vertical glazing bars are used to continue a uniform pattern where mullions or transoms have been fitted, it is also used create a Georgian style window by using a cross within each unit of glazing.



Leaded, 18mm, 20/26mm, 60mm



Obscure glass is used for front doors, French doors or bathroom windows that need a little privacy, patterned glass offers just that whilst retaining the natural light in the room.



Various finishes are available

IRON MONGERY

We can supply iron mongery to meet the needs you may have.



More information coming soon.

CHOOSE YOUR COLOURS

Our products receive a base coat of timber preservative, then a primer coat, followed by two coats of micro-porous paints by environmentaly friendly REMMERS or SIGMA products.



Dual colour available.

RAL COLOUR OF YOUR CHOICE

STAINED HARDWOOD OPTIONS

Our products receive a base coat of timber preservative, then a primer coat, followed by two coats of micro-porous paints by environmentaly friendly REMMERS or SIGMA products.



Dual colour available.

Click here for detailed technical information on this product



TECHNICAL DATA

Technical data – Flush Casement



TIMBER



Softwood – Engineered Redwood



Hardwood – Engineered Meranti or Engineered European Oak



PROFILE AND CONSTRUCTION



Frame thickness 88mm

Square



Opening out



COLOURS AND FINISH



High performance coatings in any standard RAL colour paint finish

Preservation micro porous, paint /stain micro porous flow coat applied, 3 coats

Choice of different stains



Dual colour option



GLASS



Glazing D.G.U 24mm, 4mm/16mm gap TGI/4mm soft coat Low E

 Glaze gap Argon gas filled: centre pane Uvalue 1.1W/M2k

 Patterned (obscure) glass – optional



Laminated or toughened (safe) and anti–burglary glass – optional



SPACER BAR



Colour availabe: RAL 7035 Standard



Optional: RAL 9016, RAL 9005, RAL 8003, RAL 8016, RAL 7035, RAL 7040



BARS



Astragal 18mm, 20mm, 26mm, 60mm, lead bars





GLAZING BEADING



Internally beaded to prohibit removal of the glass from outside with concealed glazing pins



Silicone continuous neutral cure seal both sides



GASKET



Q – Lon by Schlegel



HINGES AND LOCKS



Standard friction hinges



Shootbolt System



HANDLES



Standard range

Urbane stainless steel



Antique range



WINDOW CILLS



Cills may be added to the bottom of frame



VENTILATION



Trickle vents may be added to head of frame or head of sash



Outside conopy may be covered by timber head drip



DELIVERY PEROID



Generally 7 – 8 weeks unless otherwise specified



Manufacturer has the right to introduce technical alterations without notifying.
