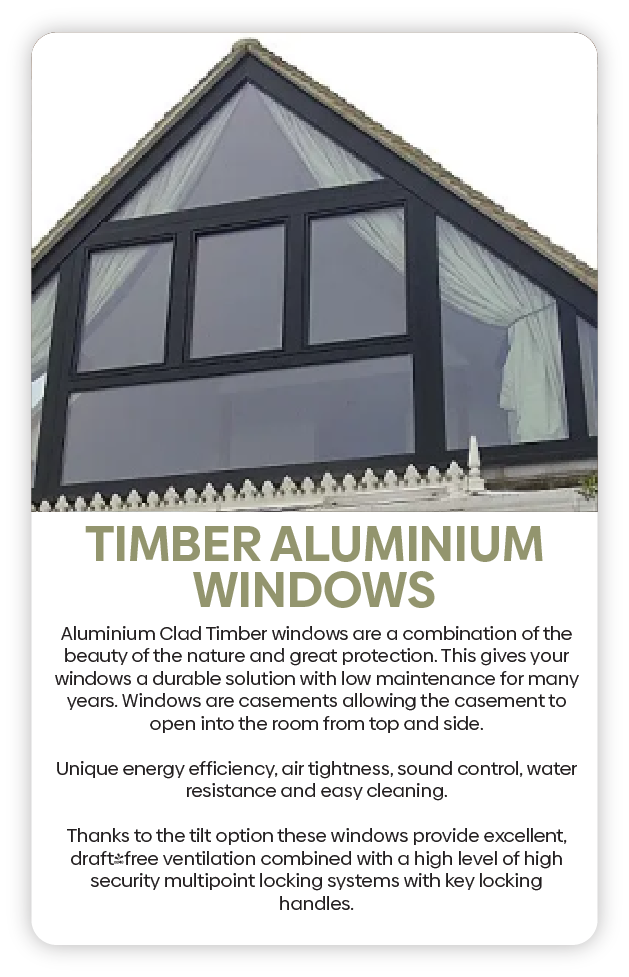

TIMBER ALUMINIUM WINDOWS

FEATURES

Aluminium Clad Timber windows are a combination of the beauty of the nature and great protection. This gives your windows a durable solution with low maintenance for many years. Windows are casements allowing the casement to open into the room from top and side.



Unique energy efficiency, air tightness, sound control, water resistance and easy cleaning.

Thanks to the tilt option these windows provide excellent, draft-free ventilation combined with a high-level of high security multi-point locking systems with key locking handles.

GLAZING

Horizontal and vertical glazing bars are used to continue a uniform pattern where mullions or transoms have been fitted, it is also used create a Georgian style window by using a cross within each unit of glazing.



Leaded, 18mm, 20/26, mm60mm



Obscure glass is used for front doors, French doors or bathroom windows that need a little privacy, patterned glass offers just that whilst retaining the natural light in the room.



Various finishes are available

IRON MONGERY

Our Secustik window handles contain a patented jamming-device which provides integrated security. This makes it more difficult to move the window fitting unlawfully from outside. It works by a coupling element acting as a sort of mechanical diode. This allows for normal use of the window handle from inside, but jams the handle if anyone tries to turn it from outside by way of the fitting.
As the handle is turned through 180 degrees from the closed position to the tilt position, the jamming-device makes a series of clicks – proof of the built-in security you can hear.

CHOOSE YOUR COLOURS

INSIDE



Our products receive a base coat of timber preservative, then a primer coat, followed by two coats of micro-porous paints by environmentaly friendly REMMERS or SIGMA products.



CHOOSE YOUR COLOURS

OUTSIDE



Aluminium cladding standard colors:

 RAL 9016, RAL 9007, RAL 9006, RAL 9005, RAL 8019, RAL 8017, RAL 8011, RAL 8007, RAL 8003, RAL 8001, RAL 7042, RAL 7035, RAL 7001, RAL 6029, RAL 6005, RAL 5015, RAL 5013, RAL 5010, RAL 3003, RAL 3002, RAL 1013,RAL 1033.

Click here for detailed technical information on this product



TECHNICAL DATA



Alu Clad 68mm



TIMBER



Softwood – Engineered Redwood

Hardwood – Engineered Meranti or Engineered European Oak



PROFILE AND CONSTRUCTION



Aluminium clad on the exterior face

Frame thickness IV68

5 options for aluminium profile

Opening in



Optional welded edges



TIMBER COLOURS AND FINISH



High performance coatings in any standard RAL colour paint finish

Preservation micro porous, paint /stain micro porous flow coat applied, 3 coats

Choice of different stains



Dual colour option



ALU CLAD COLOURS AND FINISH



Any standard RAL colour paint finish

Powder coating



Optional structure of wood



GLASS



For IV68 – Glazing D.G.U 24mm,  4mm/16mm gap TGI/4mm/16mm gap TGI/4mm soft coat Low E, Uvalue 0,5W/M2k

Glaze gap Argon gas filled

Patterned (obscure) glass – optional

Laminated ot toughened (safe) and anti –burglary glass – optional



Self – Cleaning glass, anti reflective and accustic glass – optional



SPACER BAR



Colour availabe: RAL 7035 Standard



Optional: RAL 9016, RAL 9005, RAL 8003, RAL 8016, RAL 7035, RAL 7040



BARS



26mm, 56mm, 80mm lead bars



GLAZING BEADING



Internally beaded to prohibit removal of the glass from outside with concealed glazing pins



Silicone continuous neutral cure seal both sides



GASKET



Q – Lon by Schlegel



HINGES AND LOCKS



Turn and tilt inwards

Sliding

Tilt and slide

High security, multi-point perimeter locking with cams and bolts to guard against jemmy attack – optional



Optional 90 degree egress friction hinges



HANDLES



Standard range: Hoppe Atlanta aluminium

VENTILATIONMikroventilation



Vents may be added



DELIVERY PEROID



Generally 7 – 8 weeks unless otherwise specified



Manufacturer has the right to introduce technical alterations without notifying.
